Highchart charts show a different sort order from Flexmonster

Answered
Harry asked on September 19, 2025

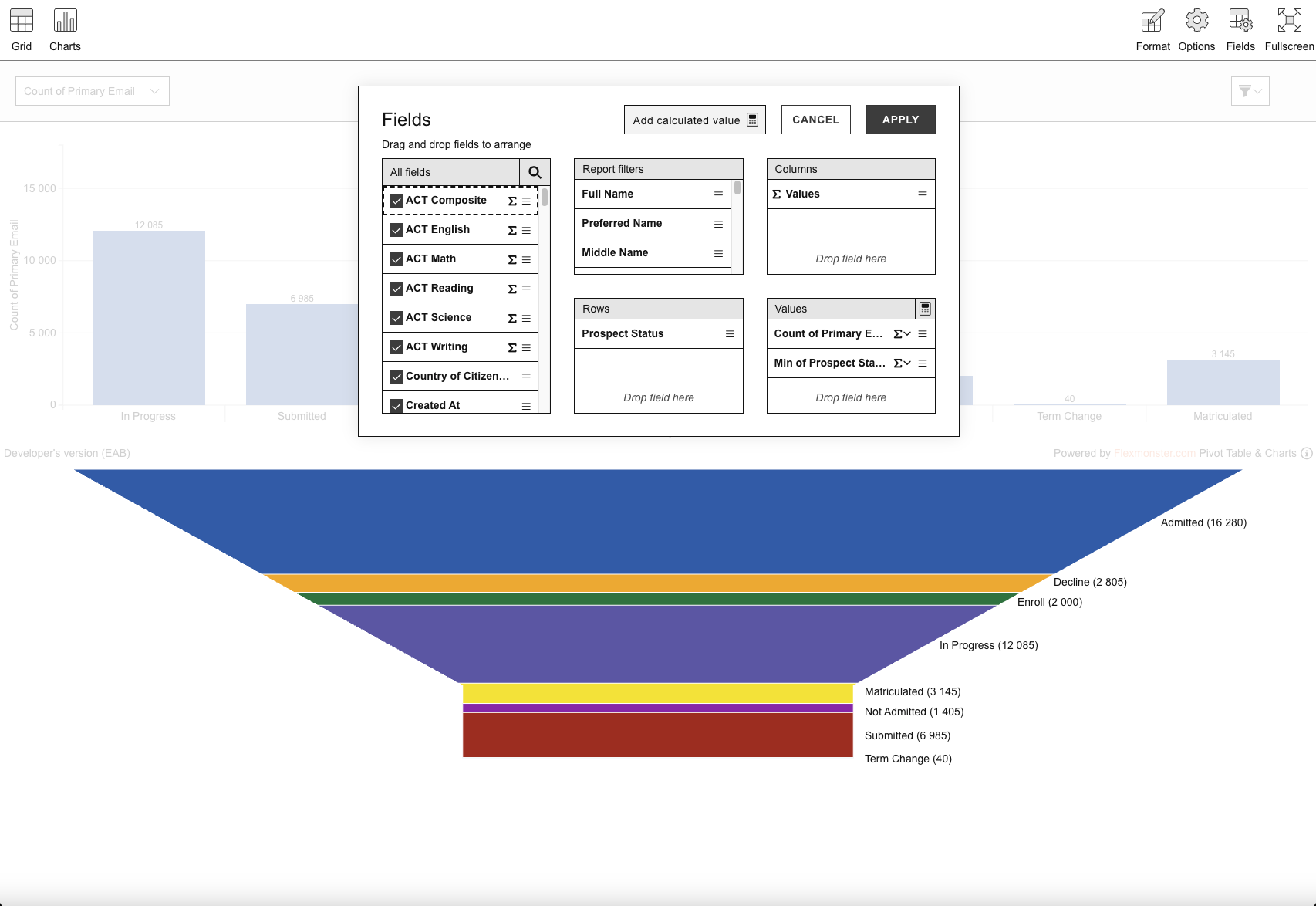

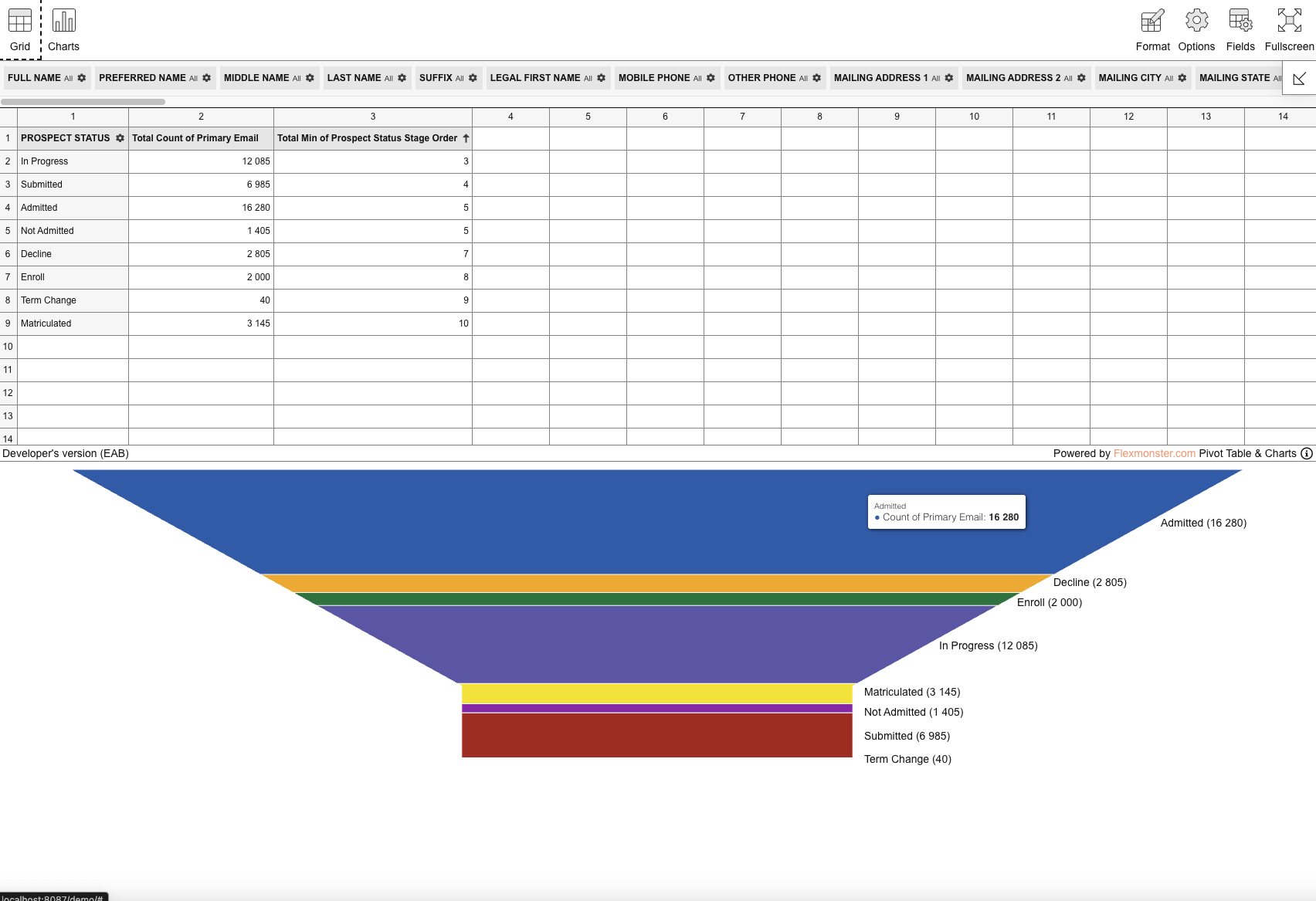

We are seeing a sorting issue with the Flexmonster/Highcharts integration. Please see the attached screenshots. We need the "Prospect Status" rows to be in the order set by the "Total Min of Prospect Status Stage Order" column. Flexmonster seems to have the correct order, however Highcharts: Funnel chart sets the order alphabetically. Is this behavior expected?

9 answers

Public
Solomiia Andrusiv Solomiia Andrusiv Flexmonster September 22, 2025

Hello, Harry!

Thank you for reaching out to us.

Our team agrees that having the chart updated when the columns of the grid are sorted would be useful. Our Dev teem will have a look at the described behavior and will be back to you with an update by the ETA October 27th.

We will notify you about any updates on the matter.

Kind regards,
Solomiia

Public
Harry September 26, 2025

Hi Solomiia,

Thank you for the update on this issue. After looking further into the problem, I believe it is an issue with setting the active measure and not a sorting issue.

Switching between measures is reflected in the flexmonster chart, but not in the highchart. I found this thread on your forums that seems related to our problem: https://www.flexmonster.com/question/chart-measure-change-event/

We are updating the slice with the active measure based on the dropdown value, however we lose our sort order when do we do this. If this is not something that is supported out of the box could you provide an implementation to get this working? We require this functionality for consistency across our charts.

Thanks!
Harry

Public
Solomiia Andrusiv Solomiia Andrusiv Flexmonster September 30, 2025

Hello, Harry!

Thank you for getting back to us.

Could you please modify the following JSFiddle to make the described case reproducible: https://jsfiddle.net/flexmonster/7aswc931/. With this information, we'll be able to test the case on our end and provide you with further guidance.

Looking forward to hearing from you.

Kind regards,
Solomiia

Public
Harry September 30, 2025

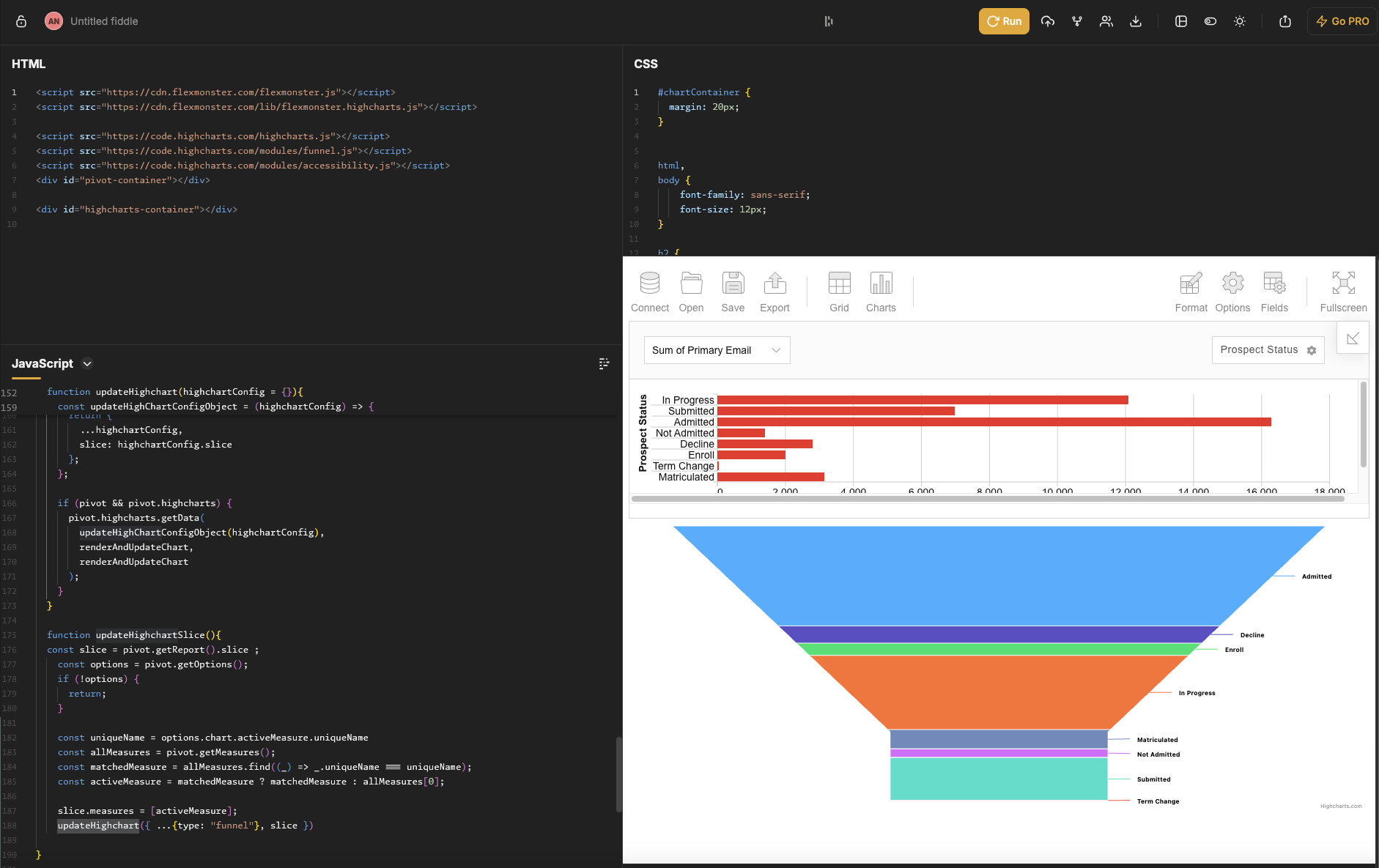

Thank you for the update! Please see our implementation here: https://jsfiddle.net/htnuxgzo/
You can reproduce the issue by:
1. selecting a chart from the Charts dropdown
2. Switching the Measure from "Sum of Primary Email" => "Min of Prospect Status Stage Order"
3. Switching the Measure back from "Min of Prospect Status Stage Order" => "Sum of Primary Email"

You will see that the Funnel chart no longer has the correct order and the sort order is now Alphabetical. "Admitted" datapoint is now on top. Please see the attached screenshot.

Thanks!

Public
Solomiia Andrusiv Solomiia Andrusiv Flexmonster October 2, 2025

Hello, Harry!

Thank you for providing a JSFiddle and steps to reproduce the case.

Our Dev team will take a look at the described behavior and get back to you within the mentioned ETA, October 27th.

We will notify you about any updates on the matter.

Kind regards,
Solomiia

Public
Solomiia Andrusiv Solomiia Andrusiv Flexmonster October 16, 2025

Hello, Harry!

Hope you are having a great week.

Our team has checked the described sorting behavior when changing the chart's active measure on our side, and would like to share the solution with you.

The sorting will remain unchanged if the measure used for sorting the grid is passed to getData() along with the current active measure. We have updated the updateHighchartSlice() method in your example: https://jsfiddle.net/flexmonster/6oehgabL/.

Please let us know if the suggested approach works well for you.

Kind regards,
Solomiia

Public
Solomiia Andrusiv Solomiia Andrusiv Flexmonster October 23, 2025

Hello, Harry!

Hope everything is well.

Our team is wondering if you had some time to check the updated example. Could you please let us know if the suggested adjustments were helpful to preserve sorting when switching between charts active measures?

Looking forward to hearing from you.

Kind regards,
Solomiia

Public
Harry October 24, 2025

Hi Solomiia,

Sorry for the delayed update. I have tested the fix and it works great! Thank you very much.

Public
Solomiia Andrusiv Solomiia Andrusiv Flexmonster 5 days ago

Hello, Harry!

Thank you for your feedback.

We are happy to hear our solution was helpful.

Feel free to reach out to us if any other questions arise.

Kind regards,
Solomiia
